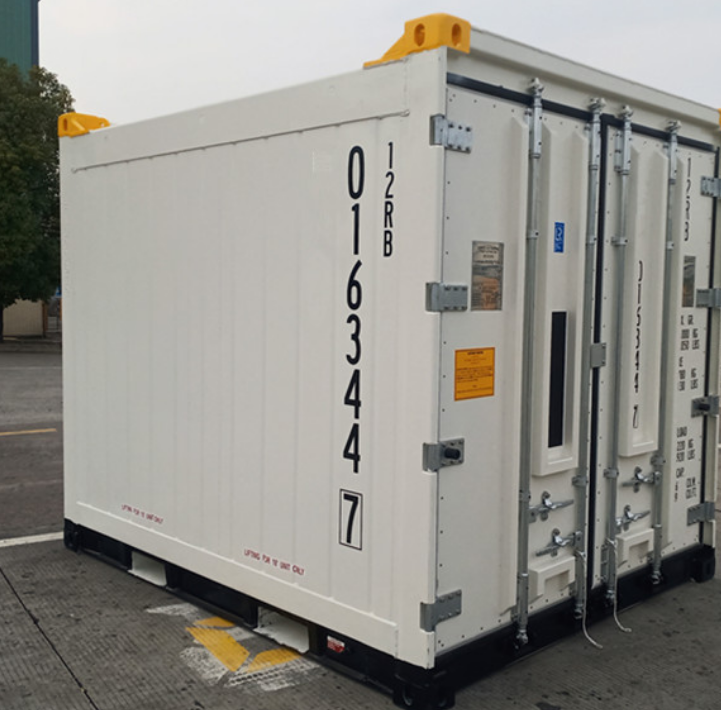

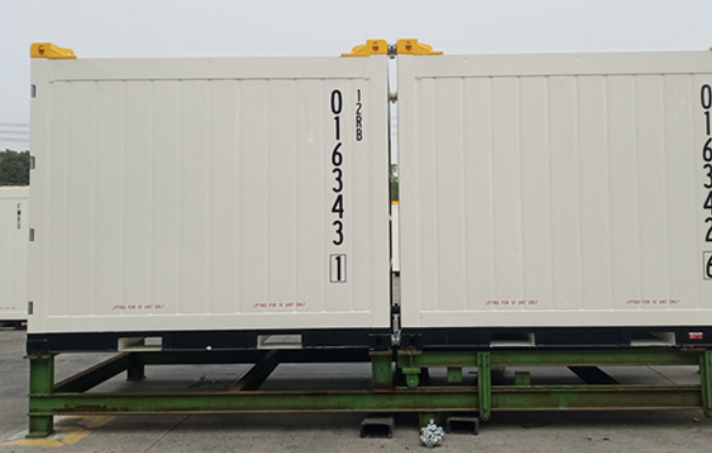

10 ft (≈3 m) refrigerated shipping container (reefer)



Description

External

Length: 3.05 m (10 ft)
Width: 2.44 m (8 ft)
Height: 2.59 m (8 ft 6 in)

Internal

Length: 2.40–2.50 m
Width: 2.29 m
Height: 2.27 m

Door opening

Width: ~2.29 m
Height: ~2.26 m

Weight & Capacity

Tare weight: ~2,800–3,200 kg
Max gross weight: ~10,000–12,000 kg
Max payload: ~6,800–8,000 kg
Internal volume: ~13–15 m³

Temperature Control

Temperature range:
–25 °C to +25 °C (some units down to –30 °C)
Control accuracy: ±0.5 °C
Refrigeration unit brands: Carrier, Thermo King, Daikin

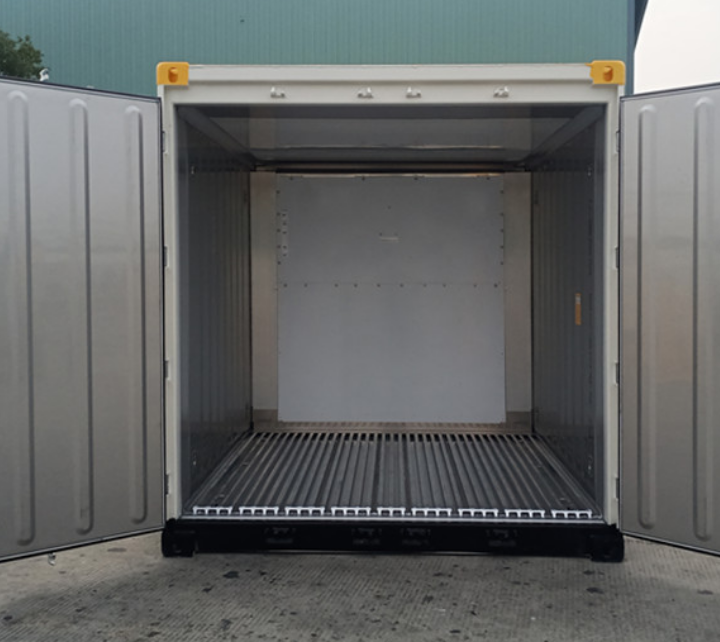

Airflow: Forced-air circulation (T-bar aluminum floor)

Electrical

Power supply:
380–460V / 3-phase / 50–60 Hz (standard)
Some units available with 230V single-phase
Power consumption: ~4–7 kW (depends on set temp & ambient)
Plug type: IEC 60309 (reefer plug)



Construction

Walls & roof: Stainless steel or aluminum with PU foam insulation
Floor: Marine-grade aluminum T-bar
Insulation thickness: ~70–100 mm
Doors: Double swing, gasket-sealed, lockable
